PART NUMBER: 12014638
BRAND: TRUST GREDDY
$ 2615.76 AUD
| Maker | TRUST |
| Part Name | GReddy Circuit Spec Oil Cooler Kit With Air Guide |
| Part No. | 12014638 |
| Vehicle Make | TOYOTA |
| Vehicle | 86 |
| Model | ZC6 |
| Engine Model | FA20 |
| Year | 8/2016- |
| Remark | Will only fit update (kouki) models |
| Oil Cooler Core Type | NS1010G - 10 row oil cooler with air guide |
| Thermostat Type | Centre block mounted (operating temp: 75deg C - 82deg C ?}2deg C) |
| Remark | Mounts in front of radiator |

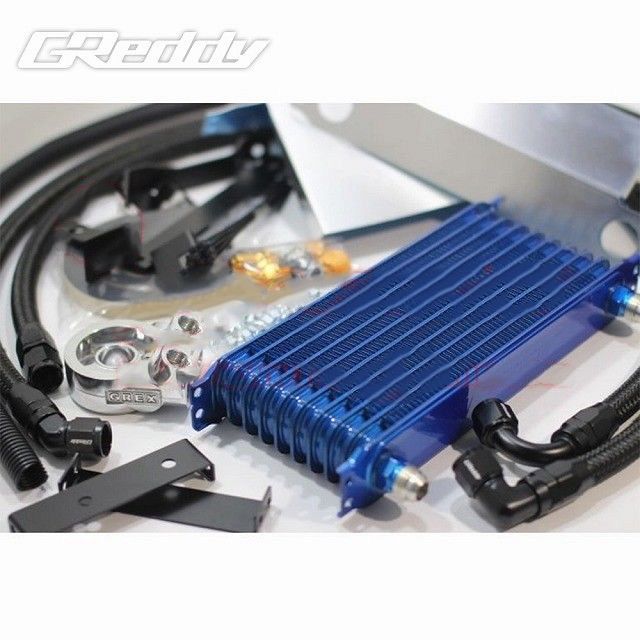

| Kit Contents | 1 x 10 row oil cooler / 1 x oil block sandwich plate / 1 x 1/8PT sensor terminal / 2 x XRP nylon mesh hoses / 1 x air guide |
| Remark | A 3/4-16 UNF oil filter is required for installation (Greddy oil filter OX-01, OX-02 or OX-03) |
| Remark | Comes with a Greddy oil cooler sensor terminal with 3 x 1/8PT ports to attach sensors for aftermarket gauges |
| Remark | Oil volume is increased by 0.8L |
| GReddy oil cooler kits help prolong the life of your oil and protects your internal engine components from high engine temperatures caused by harsh driving. GReddy oil coolers are an excellent addition, and are especially effective in harsh driving environments. By using a similar inner-fin core design as Greddy intercoolers, we are able to increase oil capacity, decrease oil temperatures, and extend engine and oil life. GReddy systems also offer an internal thermostat (opening range 75-82C) to allow for quick engine warm up. The efficient core and durable steel-braided lines ensure good flow and a leak free installation. This kit comes with an air guide and a Greddy oil cooler sensor terminal with 3 x 1/8PT ports to attach sensors for aftermarket gauges. |
